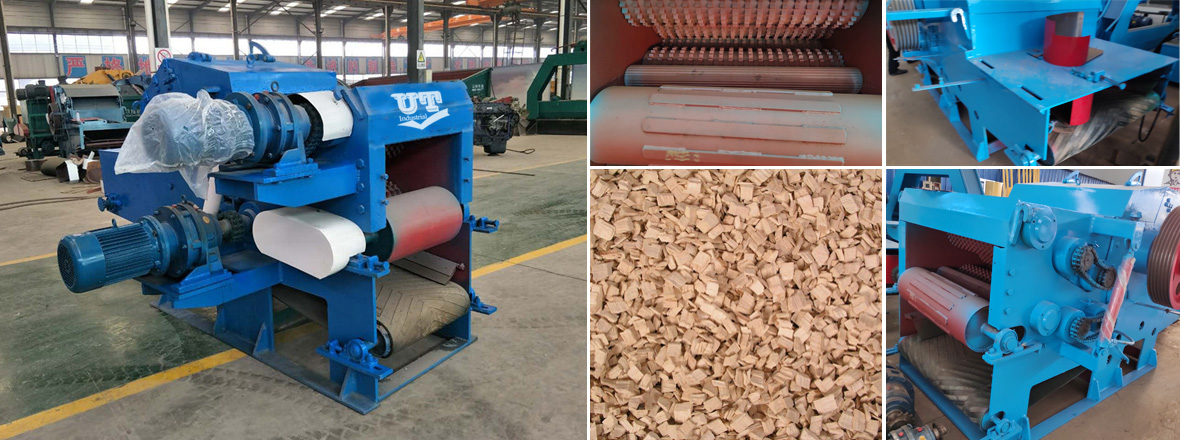

Drum Wood Chipper
Introduction of drum type wood chipper:
Drum type wood chipper from United Tech is mainly used to crush big wood logs or timber wood branches, furniture waste, long bamboo into small chips 。 it widely used in the chipboard factory, medium / high density fiberboard factory, straw factory, biological electric plant, wood chip factory, etc. Tthe thickness of last chips is 3mm-5mm, length and width about 20-50mm, the knives gap can be adjusted,then outlet chips dimension will be adjusted.
Drum wood chipper contains feeding belt conveyor, when conveying logs, the speed can be adjusted.also it can connect with outlet conveyor to transport away crushed wood chips.
Drum wood chipper has limit feeding door dimension ,raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted.
The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

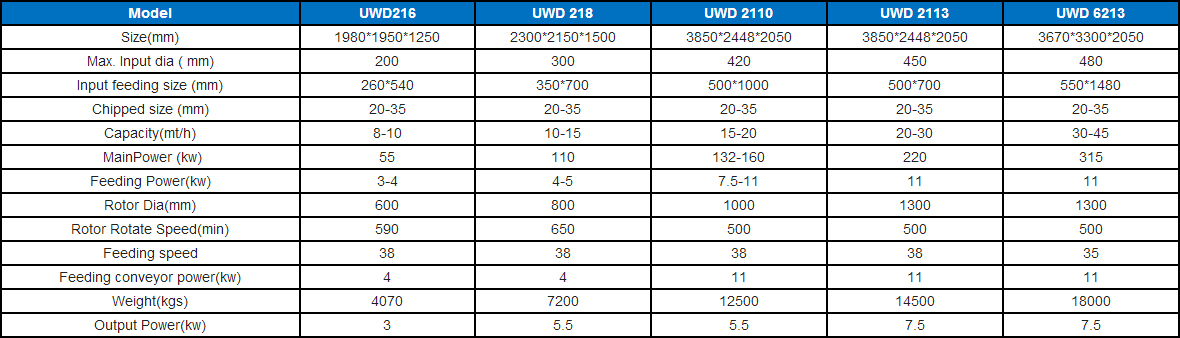

Technical Parameter:
