Air Cooled Ginder

Air Cooled Ginder
Air Cooled Grinder Introduction:
This grinder is a multifunctionalsuper fine powder grinder. It is widely used in pharmaceutics,chemical and foodstuff,etc.
It can be used for making sugar powder, salt powder and crystal material. Also used in the spice industry like chili, pepper, pimento,coriander,cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice, grains like rice, chaff, sweet potato bran, cocoa bean, coffee, etc.
Working Principle:
Its powder collecting room adopts the fully closed silencing structure, which can effectively reduce the work noise.
A cooling device is installed in the machine to reduce the temperature and make the work more stable.

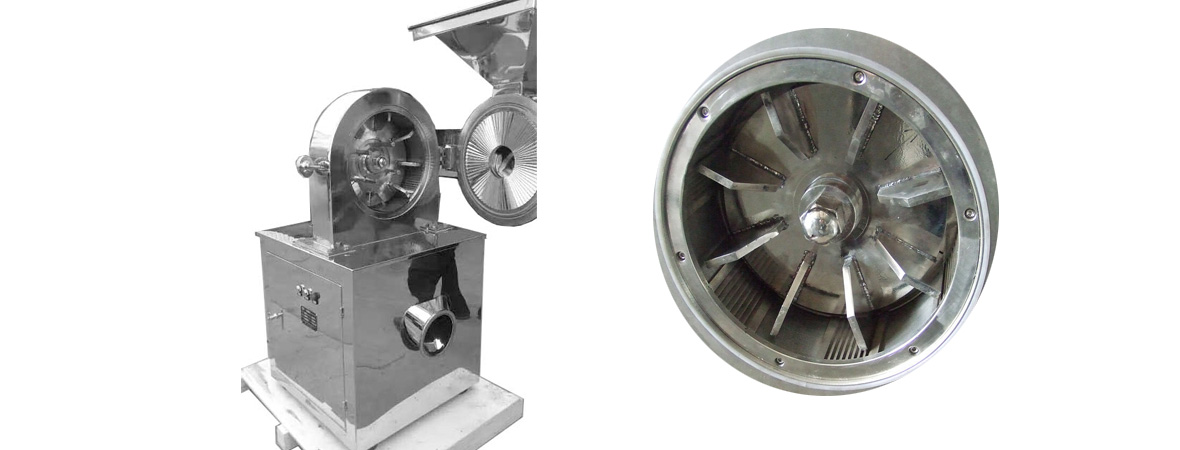

The machine adopts the percussive crushing method. After the material enters the crushing chamber, it is impacted by 6 moving hammers which are rotating at high speed. The material is smashed through the impact ring.
Advantages:
1 Use stainless steel SUS304, which has strong wear resistance and corrosion resistance. It is suitable for processing advanced and corrosive materials.
2. It is easy to be installed and dismantled and cleaned with the features of stable running, convenient moving, high efficiency, low noise, reliable working performance and product quality, safe operation, low drug hygiene and low loss.
3. The size of granules can be achieved by changing of the screen.
3. Final powder size range from 20 mesh -120 mesh, we have provide 4 screens for you.
4. Machine has water cooling system to reduce working temperature,so can working long hours.

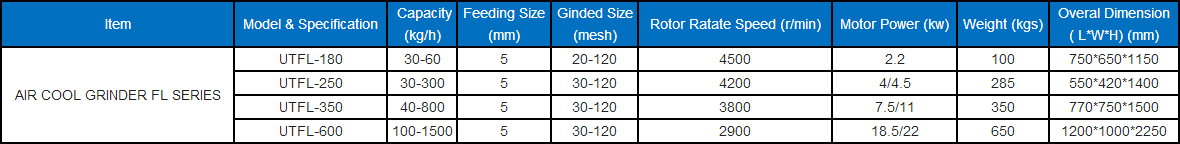

Main Technical Data of  Air Cool Ginder Series:
